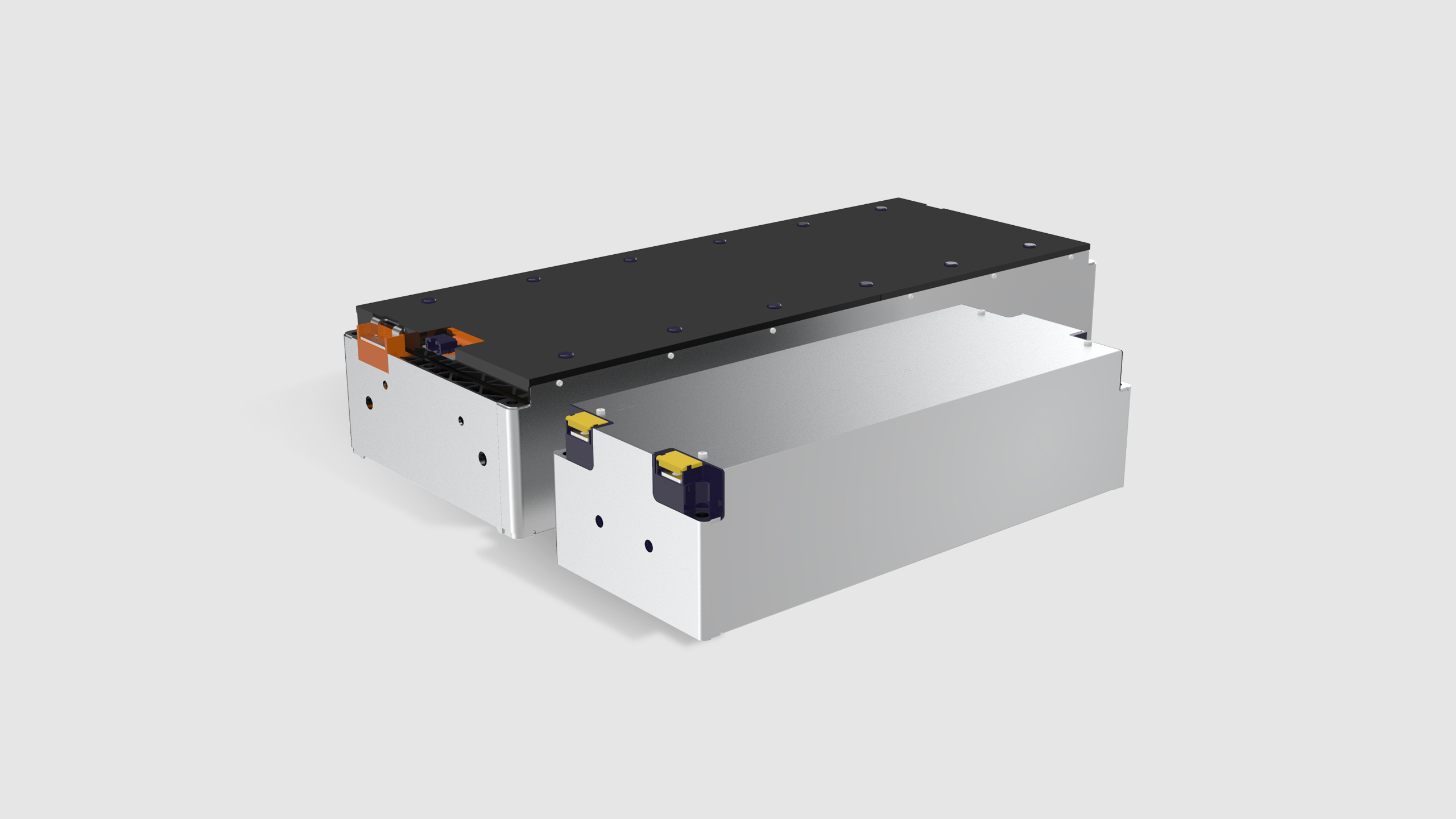

Solid state lithium battery module

Solid state lithium battery module

Product introduction

Cell model

355

390

Application cell model

B7A0Y09

B7A0Y44

Module Size

355*151*105mm

390*151*105mm

Series parallel connection mode

2P6S/3P4S/4P3S

2P6S/3P4S/4P3S

Nominal capacity

102Ah/153Ah/204Ah

112Ah/168Ah/224Ah

Nominal voltage

21.9V/14.6V/10.95V

21.9V/14.6V/10.95V

Standard charge discharge rate

0.33C/0.33C

0.33C/0.33C

Pulse discharge rate

3C

3C

Nominal energy

>2.20kWh

>2.50kWh

Module energy density

205Wh/kg

210Wh/kg
